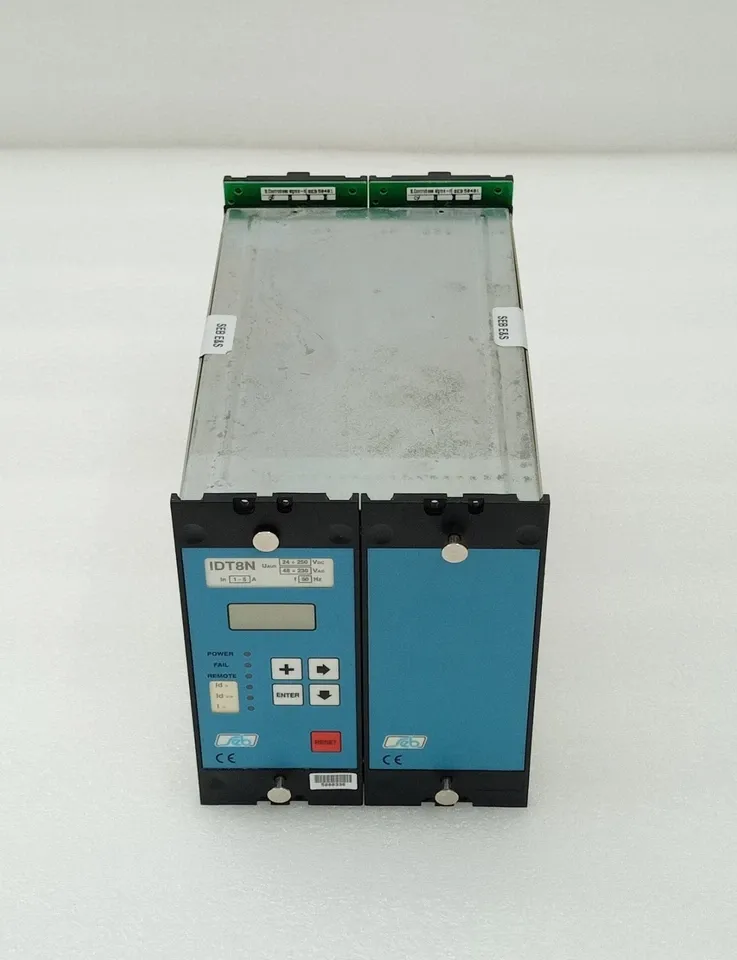

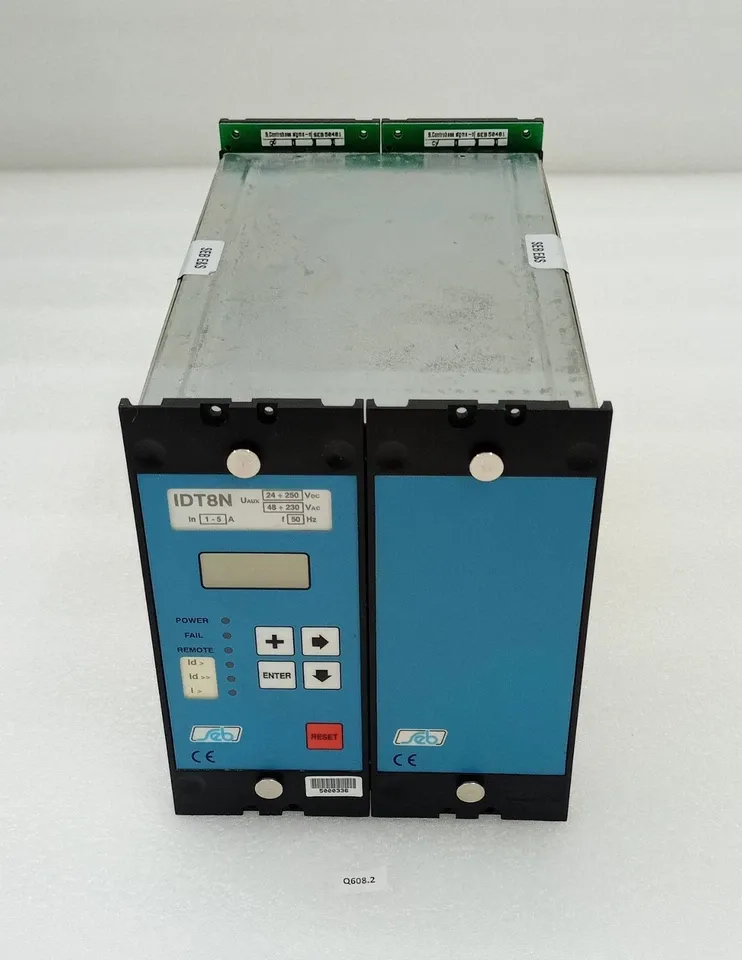

The SEB IDT8N Digital Protection Relay is an advanced microprocessor-based protection device designed primarily for transformer and power system protection. It combines multiple protection functions such as differential protection, overcurrent protection, and voltage monitoring within a single compact unit.
The relay operates mainly as a percentage biased differential protection relay (ANSI 87T), used to protect transformers and generator-transformer units by comparing incoming and outgoing currents. When an internal fault is detected (difference in current), the relay triggers a trip signal to isolate the faulty equipment.
In addition to differential protection, the IDT8N includes overcurrent thresholds (ANSI 50/51), which act as backup protection against external faults if primary protection fails.
Although not purely a dedicated voltage relay, it can be configured within protection schemes that include under/overvoltage monitoring, depending on system integration and settings.
The relay features programmable output relays (typically 4–5 outputs), which can be assigned to trip or alarm conditions, ensuring flexible control of circuit breakers and alarms.
It also includes:
-

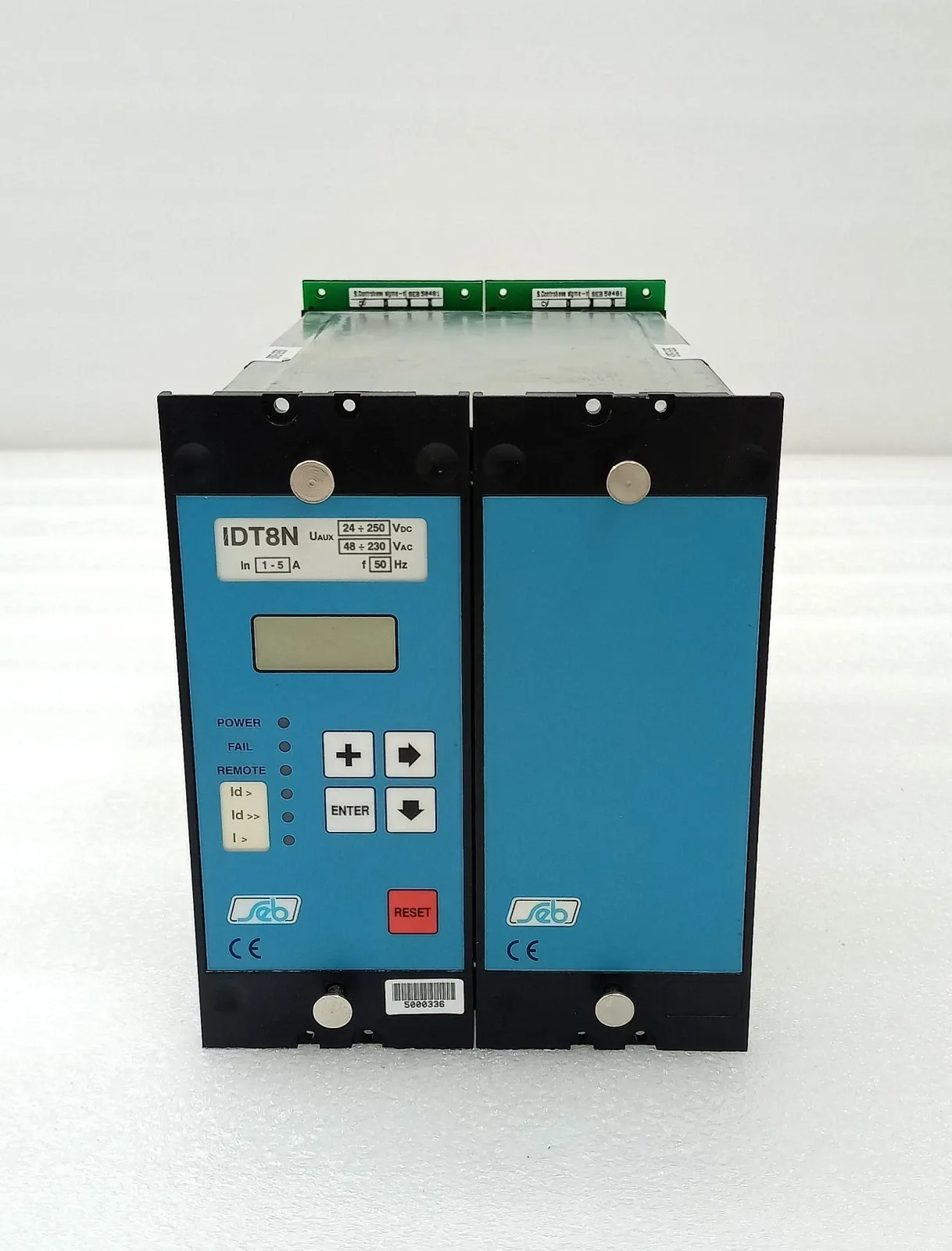

Front panel display for parameter monitoring
-
Digital inputs for control and delay functions
-
Communication interface (RS485) for integration with SCADA systems
? Key Features
-
Digital microprocessor-based protection relay
-
Transformer differential protection (ANSI 87T)
-
Overcurrent protection (ANSI 50/51)
-
Configurable for system voltage protection schemes
-
Multiple programmable output relays (trip/alarm)
-
Front panel display with parameter configuration
-
Event recording and fault diagnostics
-
RS485 communication for system integration
⚙️ Applications
-
Power transformers protection
-
Generator-transformer units
-
Electrical substations
-
Industrial power distribution systems
-
Marine and offshore electrical systems
? Notes
-

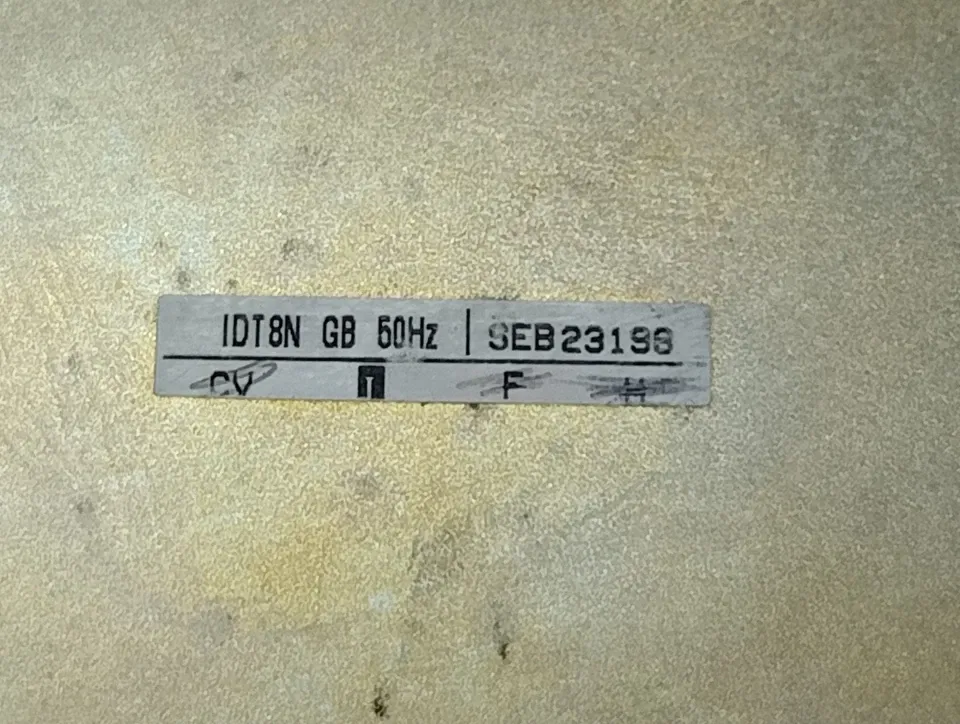

Model: IDT8N
-
Manufacturer: SEB (Divisione Elettronica e Sistemi)
-
Protection Type: Differential + Overcurrent (multi-function relay)
-
Typically used in medium/high voltage systems
-
Can be integrated with additional modules for extended functionality
-
Not a standalone voltage-only relay — part of a broader protection scheme
? Simple Explanation
? This device protects transformers and electrical systems by detecting faults (like internal damage or overload) and quickly switching off power to prevent damage.
